Create a Mirror

  • Dark
    Light
  • PDF

Article summary

Whatfix Mirror is an innovative solution that enables organizations to simulate any web application. The simulations can then be used for various use cases such as training, onboarding, and so on.

End users can interact with the content within a simulated environment. This facilitates user training and task completion as it provides step-by-step guidance in an isolated environment. This eliminates the risk of unwanted errors in the live application.

your title goes here

Mirror also supports DAP content.

Use the following steps to create a Mirror:

Prerequisite:

Define the target workflow, which is, outline the step-by-step procedure before you create a simulation of your web application. By defining the target workflow and its steps, you ensure that the mirrored environment replicates the workflow accurately.

  1. Log in to the application that you want to simulate and then launch Whatfix Studio.
    CLM_editor plug in2

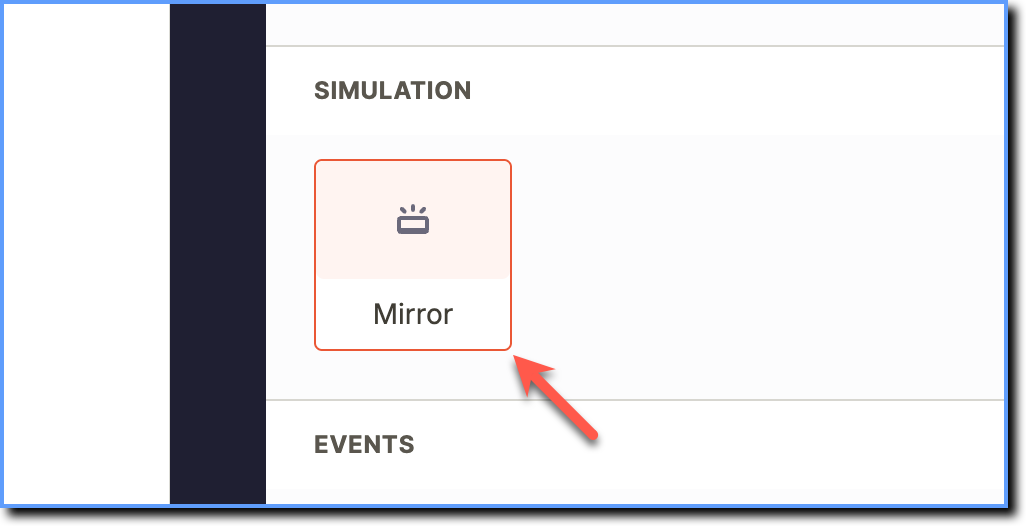

  2. Click Mirror.
    Mirror_click_mirror

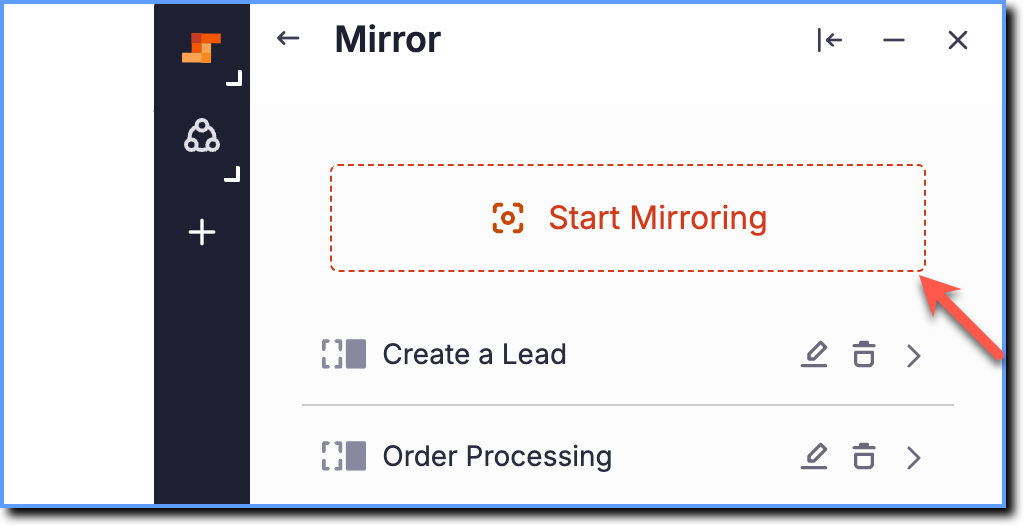

  3. Click Start Mirroring.
    Mirror_sf_click_start_mirroring

your title goes here

Mirror screens are auto linked as you perform the workflow steps when creating the Mirror. The capture process functions similarly to a screen recording. To start screen capture, simply begin performing the desired interactions with the web application. The Mirror will automatically link the Mirror screens.

  1. Select the UI element to capture the screen.
    Mirror_sf_select_UI
your title goes here

The captured screens are automatically linked within your mirrored environment. Select the relevant UI elements to define the flow of your content and then perform the workflow steps you want to train your end users on.
Whatfix automatically captures the necessary screens as you progress.

  1. Go to the next step you want to capture and then repeat step 4.
your title goes here

Whatfix Mirror enables you to add additional screens to an existing Mirror folder. This caters to situations where you may have identified additional steps within your workflow that require user guidance after the initial mirroring is completed.

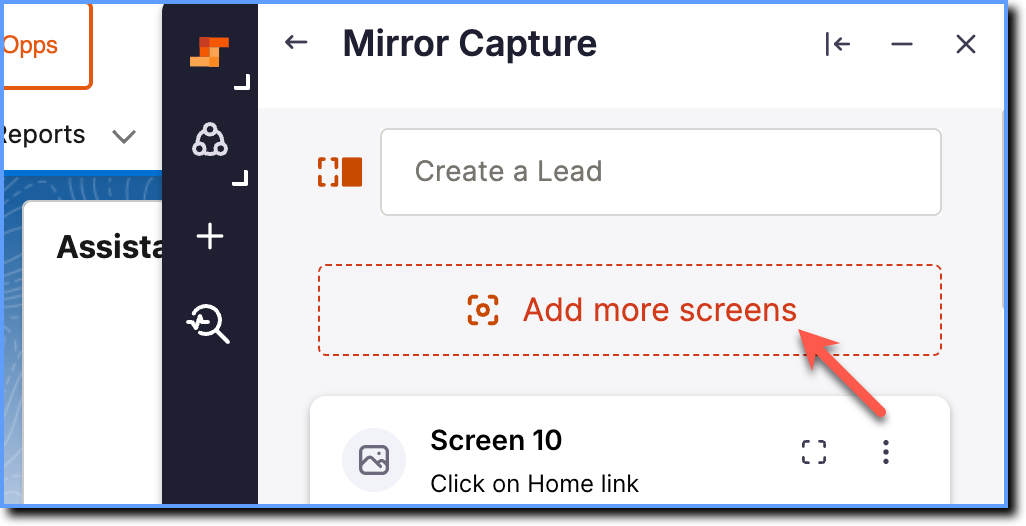

If you want to add additional screens, click Add more screens.
MIRROR_click_add_more_screens

your title goes here
  • Each Mirror Screen is captured based on a single UI element.
  • The selected UI element represents an interactive element in the web application. Clicking it may also trigger navigation or an action within the live web application. This is expected behavior, as the UI element selection process essentially interacts with the live application to define the capture area.
  • Based on your requirement, choose to select multiple UI elements as a sequence of screens that are automatically linked in the same sequence as they are captured. Whatfix Mirror then displays the screens in the order of capture. If you want to change the order of the mirror screens, see Manually link a Mirror screen.

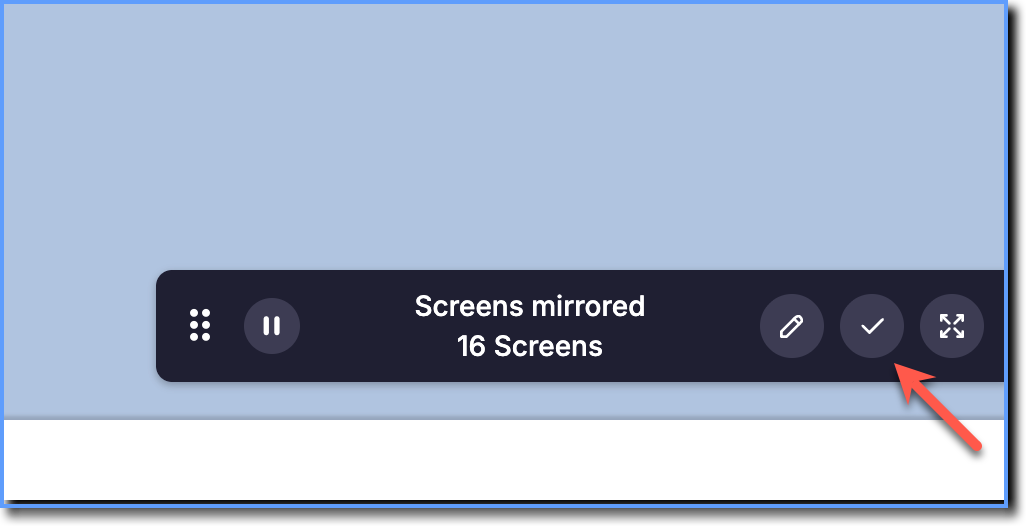

  1. Click the Done icon.
    MIRROR_Click_tick_mark
your title goes here

When you click the Done icon, all the captured Mirror screens are saved within the Mirror folder.

  1. Enter a name for the Mirror folder.
    Mirror_sf_rename
your title goes here
  • A Mirror folder is a container that groups all the screens that are captured in the mirroring process.
  • The Mirror folder is located under Mirror within the Whatfix Studio, enabling you to organize and manage the Mirror easily.

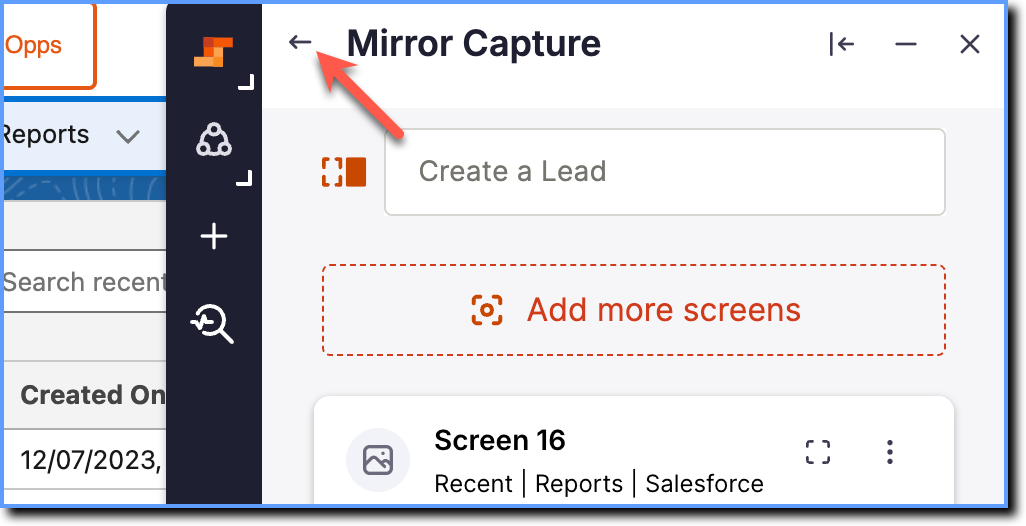

  1. Click the Back icon to return to the Mirror's main page in Whatfix Studio.
    Mirror_sf_click_back
your title goes here

To enable the Mirror functionality, create a Link content on the Whatfix guidance dashboard and push it to Production. The published Link acts as a placeholder for the Mirror links to work.
